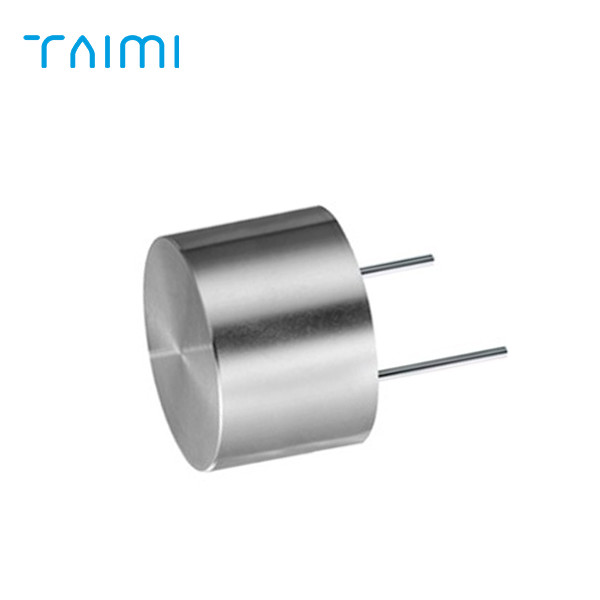

16mm 14mm Transducer and receiver double use ultrasonic sensor Waterproof Ultrasonic Transducer

Brand Name : TAIMI

Model Number : TM-1440H09ATR Waterproof Ultrasonic Transducer

Certification : ISO,RoHS CE

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 100000/month

Delivery Time : 10~20days

Packaging Details : safe packaging

Product Name : 25mm Waterproof Ultrasonic Transducer

Application Humidification : distance measurement

Usage : distance sensor

Material : aluminum

Color : sliver

Warranty : 3 years

Distance : 0.3~5m

Center Frequency : 40.0±1.0Khz Waterproof Ultrasonic Transducer

Ringing : 1.7 max

Contact Now

16mm 14mm Transducer and receiver double use ultrasonic sensor Waterproof Ultrasonic Transducer

Waterproof Ultrasonic TransducerProduct Description

Water proof type ultrasonic sensors were widely used for parking sensors, proximity sensors and level sensors, etc. With perfect seal these sensors can be used in a relatively poor environment such as dust and humidity.

Waterproof Ultrasonic Sensor Specification

Construction Waterproof Ultrasonic Sensor
Using Method Dual Use sensor
Center frequency 40.0±1.0KHz
Sound Pressure Level 120dB min
Sensitivity -90dB min
Capacitance 2200±20%pF
Ringing 1.7ms max
Max.Input Voltage 160Vp-p
Directivity Deg 30°±10° (-6dB)
Typical Sensing Range 0.3~5m
Resolution 10mm
Operating Temperature -40℃ ~+80℃
Storage Temperature -40℃ ~+85℃
Housing Material

Aluminum

Waterproof Ultrasonic Transducer Production details

16mm 14mm Transducer and receiver double use ultrasonic sensor Waterproof Ultrasonic Transducer

All Series:

12*9mm Open Type 40±1.0KHz 80°±15° (-6dB) Transmitter
16 * 10mm Open Type 40±1.0KHz 60°±15° (-6dB) Receiver
16 * 10mm Open Type 40±1.0KHz 60°±15° (-6dB) Transmitter
16*40mm Open Type 40±1.0KHz 60°±15° (-6dB) Transmitter
16 * 10mm Open Type 40±1.0KHz 60°±15° (-6dB) Transmitter&Receiver
45*20*15mm Open Type 40±1.0KHz ≤30° Transmitter&Receiver
16 * 12mm Open Type 40±1.0KHz 70°±15° (-6dB) Transmitter&Receiver
10*7mm Open Type 40±1.0KHz 70°±15° (-6dB) Transmitter
16*10mm Open Type 40±1.0KHz 60°±15° (-6dB) Transmitter&Receiver
16*12mm Open Type 23±1.0KHz 80°±15° (-6dB) Transmitter
10 * 8MM Enclosed 40±1.0KHz 70°±15° (-6dB) Dual use
12 * 8mm Enclosed 40±1.0KHz X:110°±15 Y:70° ±10 Dual use
14 * 9MM Enclosed 40±1.5KHz X:110°±15° Y:60°±15° Dual use
12 * 9mm Open Type 40.0±1.0KHz 70°±15° (-6dB) Receiver
16 * 10MM Enclosed 40±1.0KHz 70°±15° Dual use
16 * 12MM Enclosed 40±1.0KHz X:80°±15° Y:80° ±15° Dual use
20 * 16MM Enclosed 165±5KHz 14°±2°(-6dB) Dual use
21 * 11MM Enclosed 970±30 KHz 8°±2° Dual use

16mm 14mm Transducer and receiver double use ultrasonic sensor Waterproof Ultrasonic Transducer

16mm 14mm Transducer and receiver double use ultrasonic sensor Waterproof Ultrasonic Transducer

Waterproof Ultrasonic TransducerWorkshop:

16mm 14mm Transducer and receiver double use ultrasonic sensor Waterproof Ultrasonic Transducer

16mm 14mm Transducer and receiver double use ultrasonic sensor Waterproof Ultrasonic Transducer

Our Services

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional and fluent English.

3. Customized design is available.

Technical support

1.We have professional technical support team to support our customers

2.If you have any question for the technology of our products,please Email to us and we will reply to you immediately

FAQ

1. Q: When can we get the reply?
Any inquiries will be replied within 24 hours.
2. Q: Can i have samples?
A: Yes. Sample is surely ok. We can even send you free sample and you should only pay for the freight fee.
3. Q: What about minimum order quantity?
A: We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample to test first.
4. Q: What about delivery time?
A: We will send sample to you within 3 days.
Production for big quantity needs 20 to 25 days. And it also depends on product and quantity.
5. Q: What about terms of payment?
A: Payment terms: T/T, west Union, Paypal and L/C etc.
6. Q: How you will send the goods to us?
A: We will send the goods to you by Air (DHL, Fedex, UPS, TNT) and Sea shipping etc.
7. Q: Are you trading company or manufacturer ?
A: We are in China buzzer manufactory
8. Q: Do you support OEM and ODM services?
A: Yes, surely support. we can customize products according to the drawing.
9. Q: Can you provide driven circuit?
A: Yes, of course sure.
10. Q: Can you solve technical problems for us?
A: Yes, Our Technical team will try our best to support you.

16mm 14mm Transducer and receiver double use ultrasonic sensor Waterproof Ultrasonic Transducer
