Electrical Characteristics of 30mm Piezo Element with Ultra-thick Copper Sheet for Custom-made Electronic Alarm Buzzer

Name: Electrical Characteristics of 30mm Piezo Element with Ultrathick Copper Sheet for Custommade Electronic Alarm Buzzer
Brand: TAIMI
Price: 1 USD

Cheap Electrical Characteristics of 30mm Piezo Element with Ultra-thick Copper Sheet for Custom-made Electronic Alarm Buzzer for sale

Brand Name : TAIMI

Model Number : TM-A30T-4A1W60 Piezo element

Certification : ISO9001、ISO14001、IATF16949

Place of Origin : CHINA

MOQ : 1000PCS

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000000/month

Delivery Time : 10~15days

Packaging Details : safe packaging

Material : Brass

Resonance Frequency (KHz) : 4khz±0.6 Piezo element

Max Input Voltage (Vp-p) : 30vp-p Max

Resonant Impedance (Ω) : 200 max

Capacitance at 120Hz (nF) : 50±30%

Ceramic plate diameter (mm) : 25mm

Dimension/Thickness : 30*0.66mm

Operating temperature : -20℃ to 70℃

Contact Now

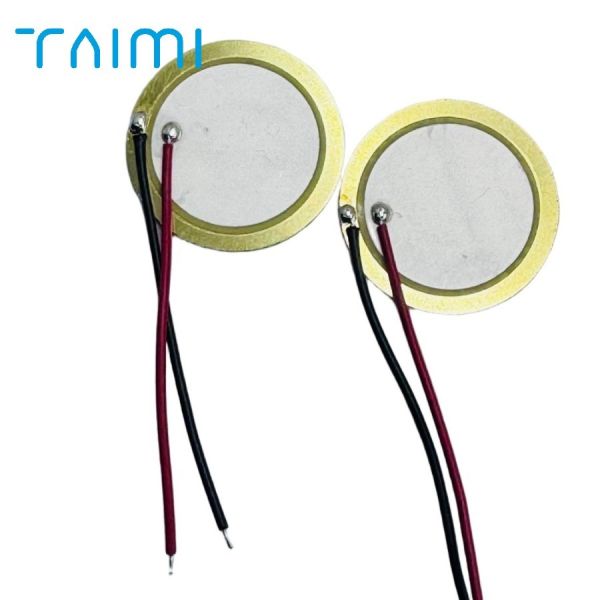

Ultra-thick copper sheet 30mm piezo element meanufacture custom-made Thinkness 0.66mm

Piezo element Electrical Characteristics
Part No:TM-A30T-4A1W60
1	Resonance Frequency (KHz)	4±0.6
2	Max Input Voltage (Vp-p)	30 max
3	Resonant Impedance (Ω)	200 max
4	Capacitance at 120Hz (nF)	50±30%
5	Operating Temperature (℃)	-20～+70
6	Storage Temperature (℃)	-30～+80
7	Ceramic plate diameter “d”(mm)	Φ25±0.5
8	Metal plate diameter “D”(mm)	Φ30±0. 1
9	Metal plate Thickness “t”(mm)	0.5±0.05
10	Total Thickness “T”(mm)	0.66±0.1
11	Metal Material	brass

DIMENSIONS (UNIT: mm) ±0.5mm Tolerance: ±0.5mm Except Specified

Electrical Characteristics of 30mm Piezo Element with Ultra-thick Copper Sheet for Custom-made Electronic Alarm Buzzer

Please connect us to get more details:

Email:sales88@taimihk.com

Mobil/WhatsApp:+86 13538467125

Electrical Characteristics of 30mm Piezo Element with Ultra-thick Copper Sheet for Custom-made Electronic Alarm Buzzer Images
